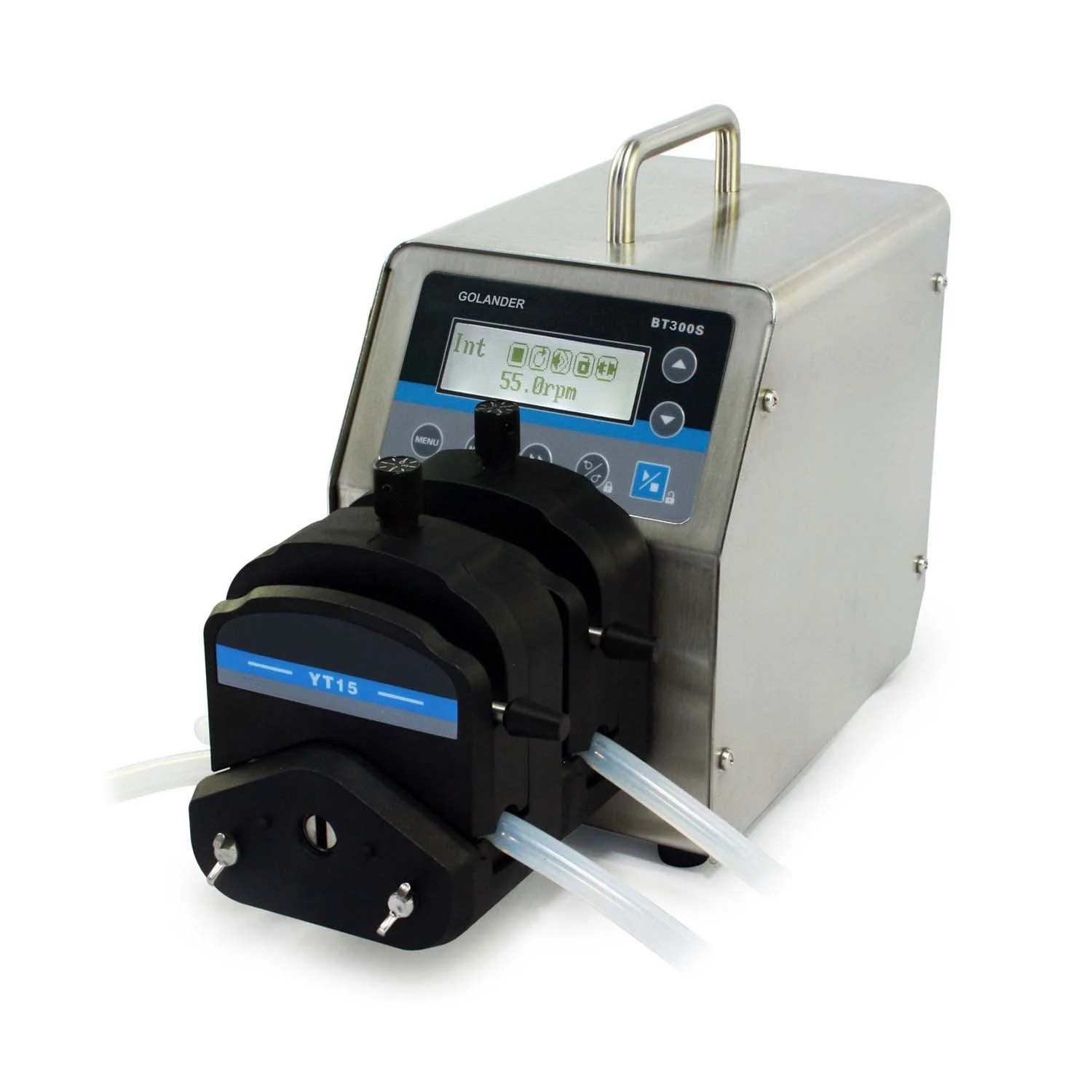

BT300S Basic Variable Speed Peristaltic Pump provides flow range from 0.006 to 1600 mL/min with variable pump heads and tubings. It provides not only the basic functions such as reversible direction, start/stop and adjustable speed, but also Time Dispense Mode and Anti-Drip function. With MODBUS RS485 interface, pump is easy to communicate with external device, such as PC, HMI or PLC.

Functions and Features

• LCD displays rotating speed and working mode.
• Membrane keypad.
• Reversible direction, start/stop control and adjustable speed.
• Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles.
• 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm.
• External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
• With RS485 MODBUS interface, easy to communicate with external device.
• Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
• Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
• Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.

Specifications

• Flow range: 0.006-1600 mL/min
• Speed range: 0.1-350 rpm
• Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; between 100-350 rpm, 1 rpm resolution
• Speed accuracy: 0.5%
• Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
• Power consumption: < 50W
• External logic level control signal: 5V, 12V (standard), 24V (optional)
• External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
• Communication interface: RS485 MODBUS
• Operating condition: Temperature 0~40°C; Relative humidity < 80%
• IP grade: IP31
• Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
• Weight: 4.9 kg (10.8 lbs)

BT300S Suitable Pump Heads and Tubing, Flow Parameters
